BrochureNICE 100+
By Inovance
Features
Open loop integrated elevator control solution
Maximum speed: 1.0 m/sec
Selectable door control mode (auto, manual, semi-auto)
Standard: 8 floors - expansion option for 16 floors
Programmable I/Os
Robust and reliable relay-based outputs
Comprehensive trip diagnostics
Rescue function ready with external single-phase 220 V UPS
Specifications
Enhanced reliability with conformal coating, protects against humidity and dust pollution
Operation in high ambient temperatures

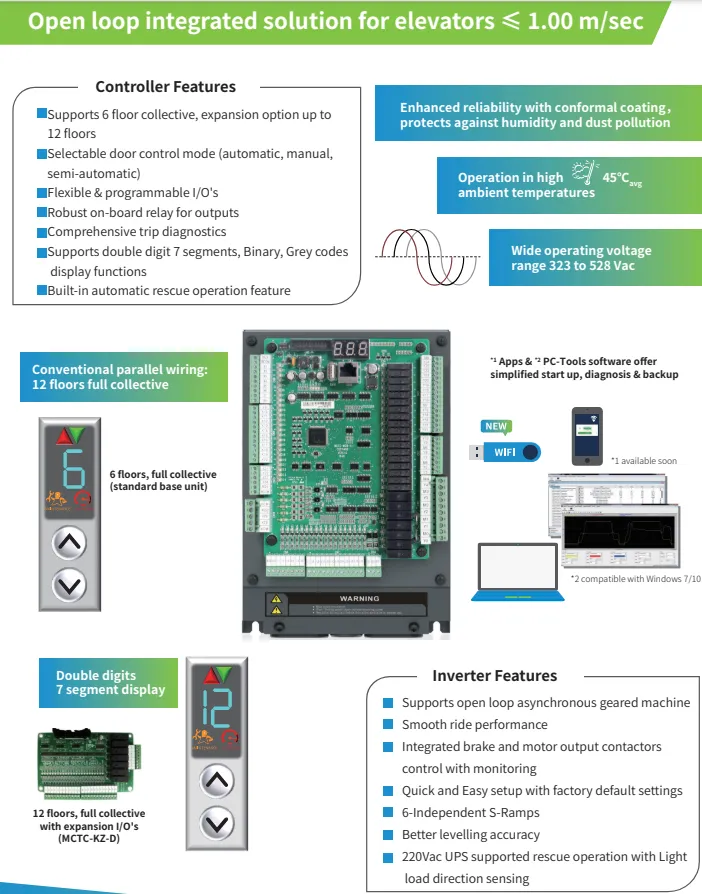

-- Controller --
Supports 6 floor collective, expansion option up to 12 floors
Selectable door control mode (automatic, manual,semi-automatic)
Flexible & programmable I/O's
Robust on-board relay for outputs
Comprehensive trip diagnostics
Supports double digit 7 segments, Binary, Grey codes display functions
Built-in automatic rescue operation feature
-- Inverter --
Supports open loop asynchronous geared machine
Smooth ride performance
Integrated brake and motor output contactors control with monitoring
Quick and Easy setup with factory default settings
6-Independent S-Ramps
Better levelling accuracy
220Vac UPS supported rescue operation with Light load direction sensing
Description

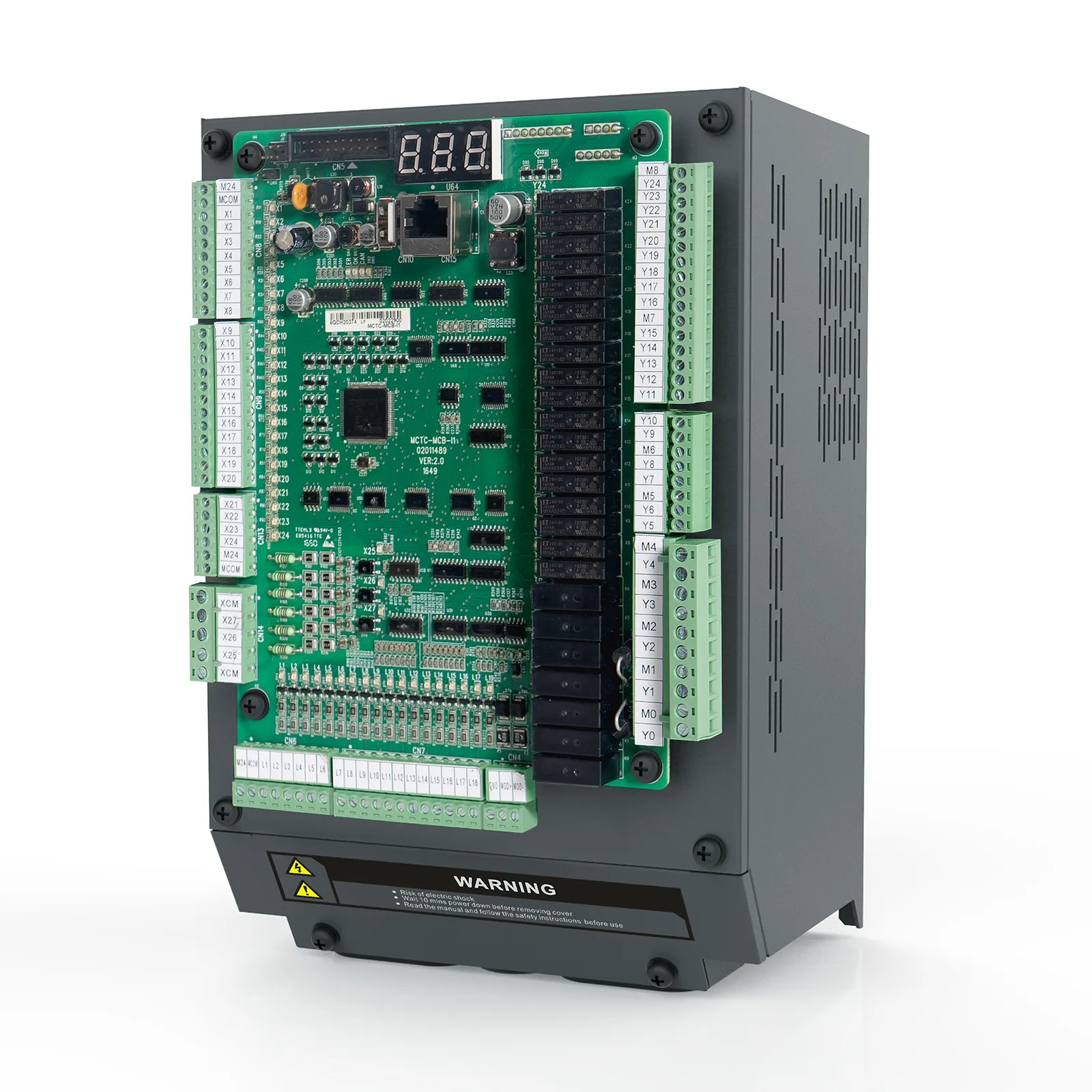

The NICE100+ Series is an open loop integrated elevator control solution from Inovance Technology Co., Ltd. It is designed for elevators with speeds up to 1.00 m/sec and supports up to 12 floors with full collective control. The solution includes a base unit for 6 floors and an expansion I/O module for up to 12 floors.
The controller features include selectable door control modes, flexible and programmable I/Os, robust on-board relays for outputs, comprehensive trip diagnostics, support for various display types, and a built-in automatic rescue operation feature. The integrated inverter supports open loop asynchronous geared machines, offering smooth ride performance, better leveling accuracy, and enhanced reliability with conformal coating protection against humidity and dust.

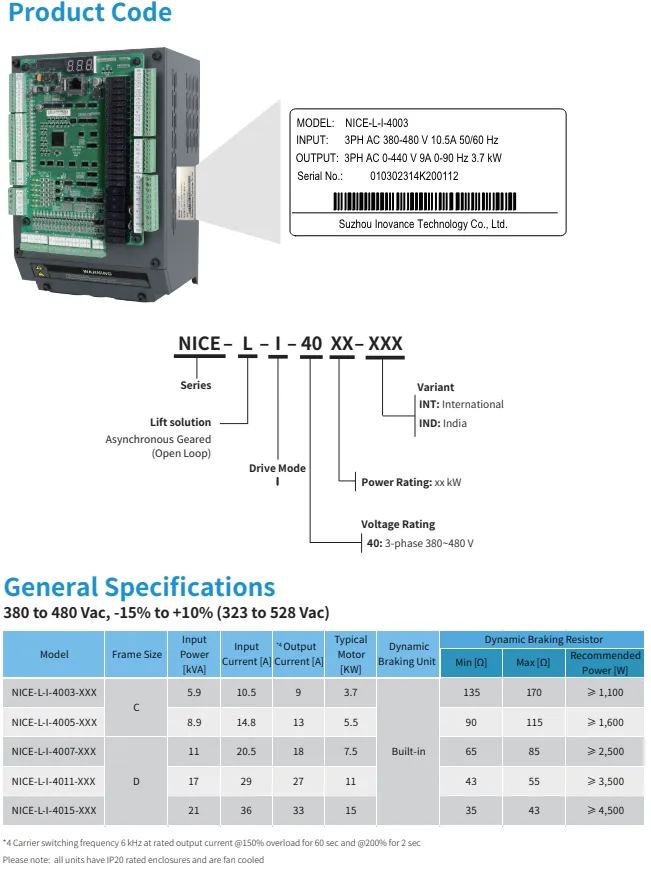

The solution is compatible with Windows 7/10 and comes with PC-Tools software for simplified startup, diagnosis, and backup. It also supports a remote LED/LCD keypad with optional memory and multilingual support. The product line offers various power ratings and frame sizes to accommodate different elevator configurations.
