BrochureME 320LN
By Inovance
Features
Closed loop AC elevator drive
Flexible, programmable I/O's
Onboard Modbus-RTU
Comprehensive trip diagnostics
Built-in dynamic braking unit
Anti-rollback function for PMSM gearless machines
Pre-torque function (analog signal from load cell for geared machines)
Removable cooling fan
Multilingual keypad
Optional remote keypad
Optional memory
Conformal coating
Operating voltage range: 323-528 V
PC-based software
Operates in high ambient temperatures: 45 ̊C
Smooth ride performance
Five independent S-ramps
Easy set-up with default factory setting
Short floor and direct approach functions
60 Vdc rescue function ready
Light load direction for rescue function

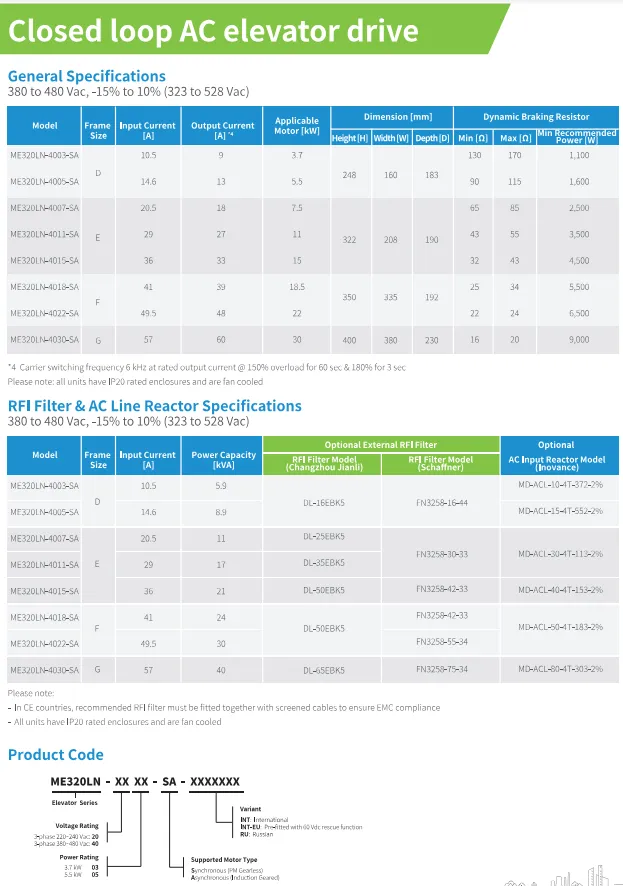

Specifications
Enhanced reliability with conformal coating, protects against humidity and dust pollution
Operation in high ambient temperatures
Smooth ride performance
Integrated brake control
Easy setup with default factory setting for rapid commissioning
5 independent S-Ramps
Short-floor function
Direct approach function
Light load direction sensing
60 Vdc rescue function
220 Vac UPS (sine & quasi square type)
Non-rotational encoder phase offset tuning
Flexible programmable I/O's
Onboard Modbus-RTU
Comprehensive trip diagnostics
Built-in dynamic braking unit
Anti-rollback function for PMSM gearless machines
Pre-torque function
(Analog signal from load cell for geared machines)
Description

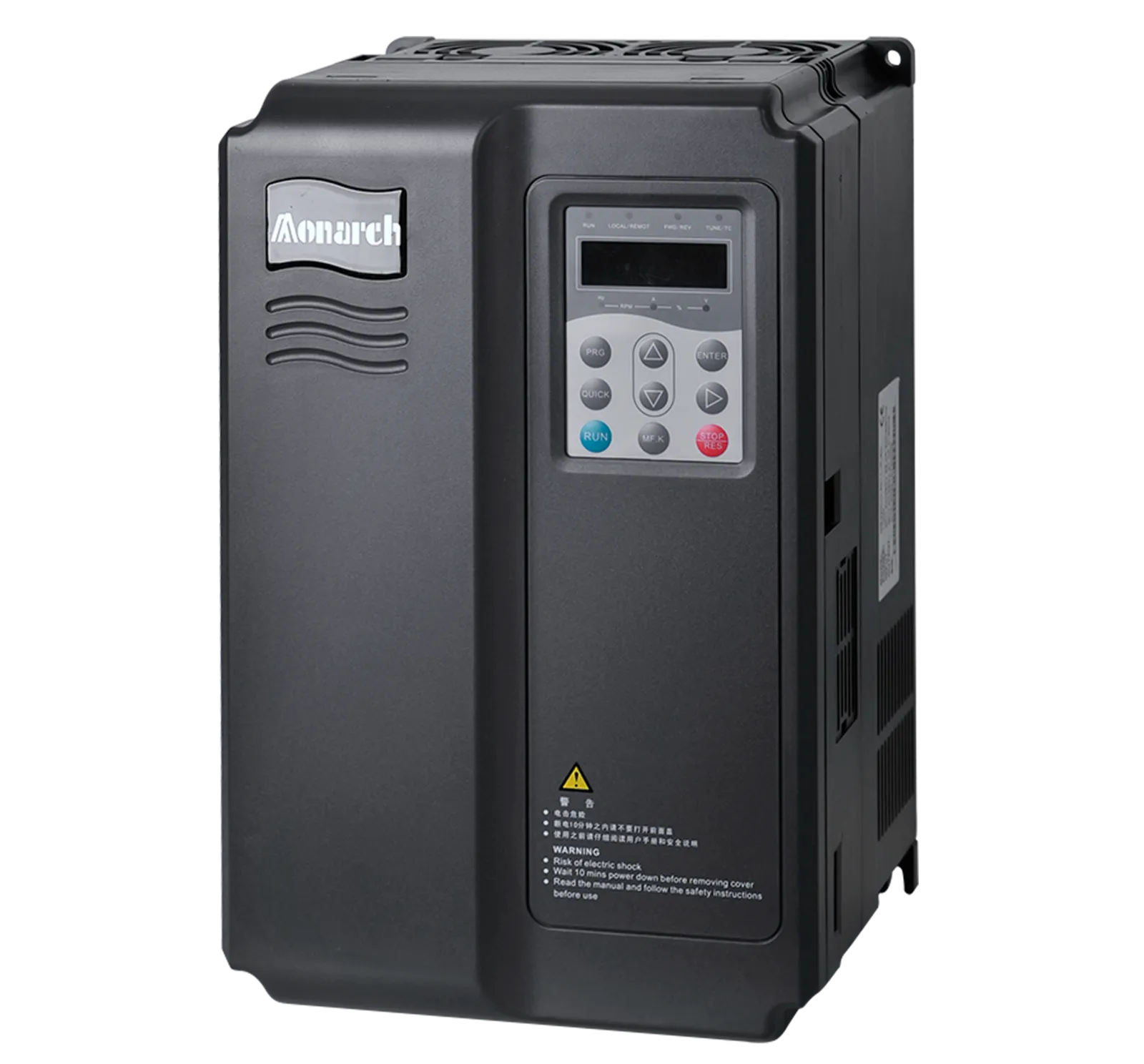

The ME320LN "e" Series by Inovance is a closed loop AC elevator drive designed for both gearless and geared elevator applications. It offers smooth ride performance and easy setup with default factory settings for rapid commissioning. Key features include integrated brake control, 5 independent S-Ramps, short-floor function, direct approach function, and light load direction sensing.
The drive can operate in high ambient temperatures up to 45°C and has enhanced reliability with conformal coating to protect against humidity and dust. It supports both 60V DC rescue function and 220V AC UPS operation. The multilingual keypad comes with memory and supports English, Turkish, Italian and Russian languages.

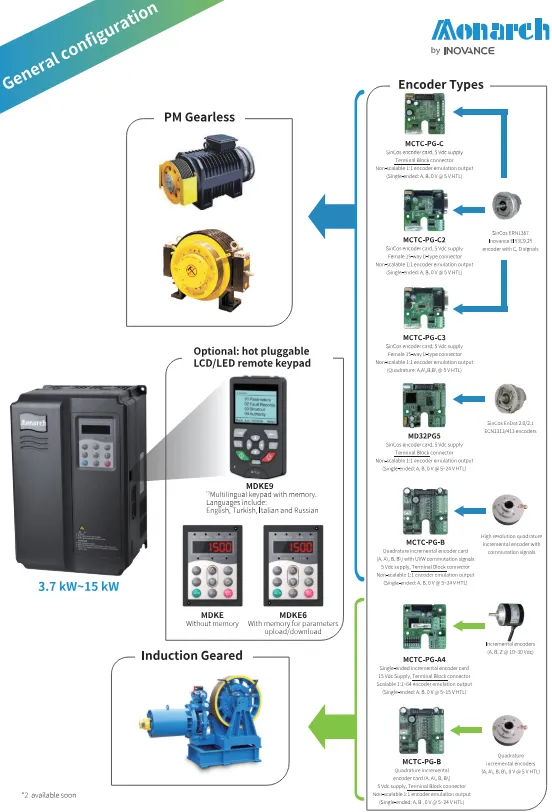

Available in power ratings from 3.7kW to 30kW, the ME320LN has a wide operating voltage range of 323-528 VAC. It features flexible programmable I/Os, onboard Modbus-RTU, comprehensive trip diagnostics, and a built-in dynamic braking unit. The drive supports various encoder types for both permanent magnet and induction motors.
With over 2 million installations worldwide, Inovance provides a proven solution for elevator control with the ME320LN drive, offering reliability, performance and easy installation for elevator applications.
