BrochureNICE 1000+
By Inovance
Features
Standard: 8 floors - expansion option for 16 floors
Maximum speed: 1.5 m/sec
Duplex onboard group control (CANbus serial communication)
Double digit, 7-segment display (parallel connection)
Selectable door control mode (manual, semi-auto, auto)
Selectable fireman operation
Synchronous (PM gearless machine) or asynchronous (geared machine)
Single-phase 220 V UPS rescue mode operation ready with automatic light load search
Comprehensive trip diagnostics
Output frequency: 0.0 to 100.0 Hz
Static auto-tuning for asynchronous and synchronous machines (without brake opening)

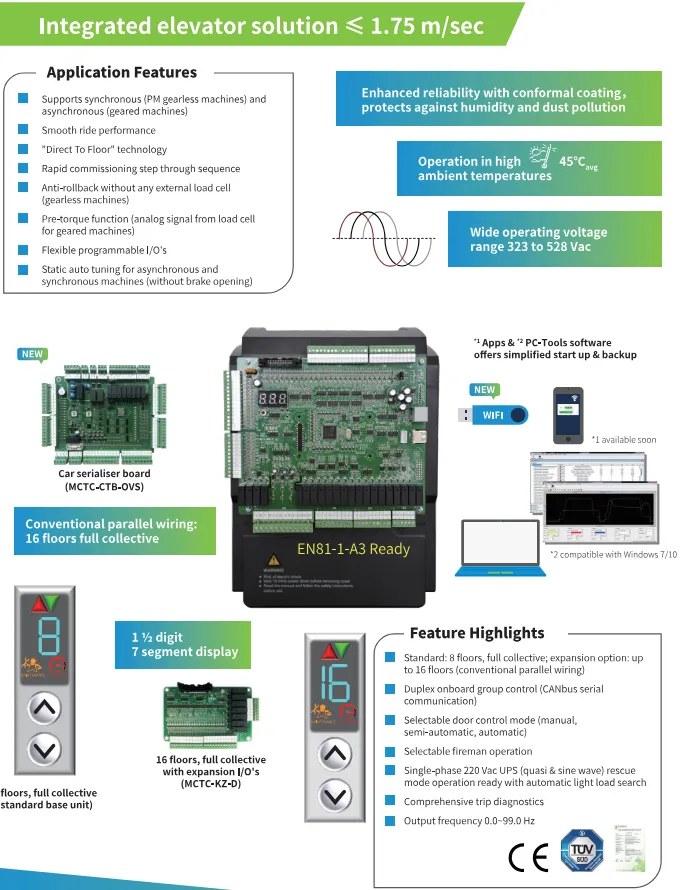

Specifications
Enhanced reliability with conformal coating, protects against humidity and dust pollution
Operation in high ambient temperatures
Supports synchronous (PM gearless machines) and asynchronous (geared machines)
Smooth ride performance
"Direct To Floor" technology
Rapid commissioning step through sequence
Anti-rollback without any external load cell (gearless machines)
Pre-torque function (analog signal from load cell for geared machines)
Flexible programmable I/O's
Static auto tuning for asynchronous and synchronous machines (without brake opening)
Standard: 8 floors, full collective; expansion option: up to 16 floors (conventional parallel wiring)
Duplex onboard group control (CANbus serial communication)
Selectable door control mode (manual, semi-automatic, automatic)
Selectable fireman operation
Single-phase 220 Vac UPS (quasi & sine wave) rescue mode operation ready with automatic light load search
Comprehensive trip diagnostics
Output frequency 0.0~99.0 Hz
Description

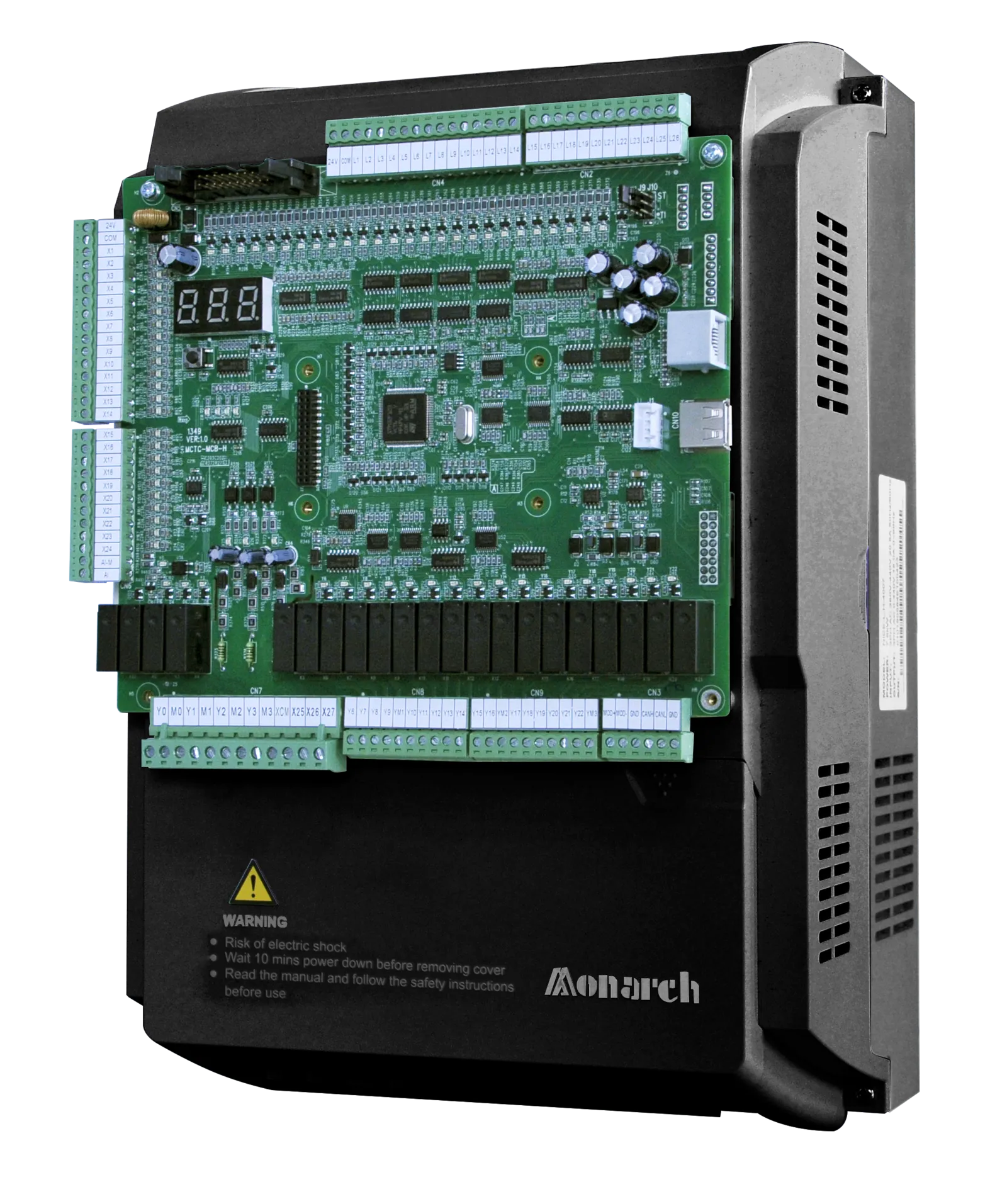

The Nice1000 is an integrated elevator control solution designed for gearless (PM synchronous) and geared (asynchronous) machines. It offers enhanced reliability with conformal coatings to protect against humidity and dust, along with smooth ride performance and "Direct To Floor" technology. Key features include operation at high ambient temperatures up to 45°C, anti-rollback without an external load cell for gearless machines, pre-torque function for geared machines, a wide 323-528VAC operating voltage range, flexible programmable I/Os, and static auto-tuning.
The base model supports 8 floors full collective, expandable to 16 floors with optional I/O expansion. It enables simplex or duplex group control via CANbus. Door control modes include manual, semi-automatic and automatic for various door types like swing, telescopic and bi-fold. Other capabilities include fire service, UPS rescue mode, comprehensive diagnostics, arrival gongs/voice announcements, and hot-pluggable remote LCD/LED keypads in multiple languages.

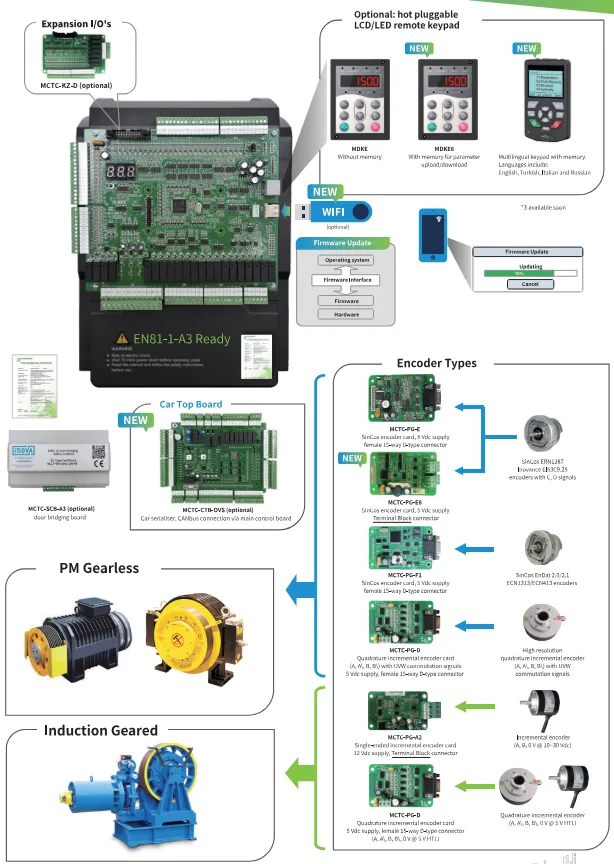

Encoder interface options cover SinCos absolute, EnDat, incremental quadrature and single-ended types for gearless PM and geared induction motors. The solution is powered by the Nice1000 AC drive rated from 2.2-45kW at 380-480VAC input. Overall, it provides a comprehensive, flexible and high-performance integrated elevator control package.
