BrochureNICE 3000+
By Inovance
Features
Redundancy control via multi-CPUs equipped with CANbus, Modbus, and GSM communications technology
Displacement calculation methods derive the N velocity profile to achieve optimum direct-to-point distance control
Simple 2-wire serial communications to commission duplex group control
Group control of up to 8 elevators is based on fuzzy logic control theory
In-built real-time clock to facilitate time-sharing control and elevator management
Flexible emergency backup power; 220 Vac power input makes emergency evacuation easy with automatic light load direction search
Automatic identification operation between short-floors
Handheld operation tools: mini keypad, PC to facilitate easy commissioning
60 fault codes to facilitate easy diagnostics
Specifications
Serial technology

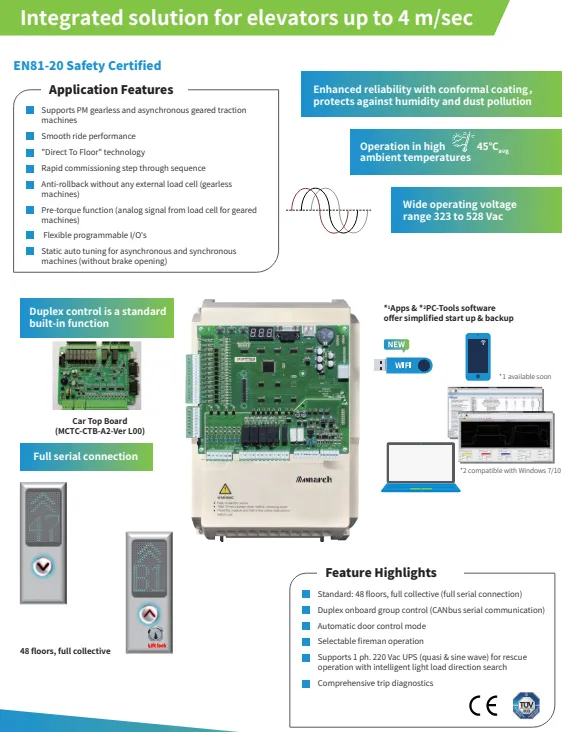

EN81-20 Safety Certified
Enhanced reliability with conformal coating, protects against humidity and dust pollution
Operation in high ambient temperatures
Standard: 48 floors, full collective (full serial connection)
Duplex onboard group control (CANbus serial communication)
Automatic door control mode
Selectable fireman operation
Supports 1 ph. 220 Vac UPS (quasi & sine wave) for rescue
operation with intelligent light load direction search
Comprehensive trip diagnostics
Supports PM gearless and asynchronous geared traction machines
Smooth ride performance
"Direct To Floor" technology
Rapid commissioning step through sequence
Anti-rollback without any external load cell (gearless machines)
Pre-torque function (analog signal from load cell for geared machines)
Flexible programmable I/O's
Static auto tuning for asynchronous and synchronous machines (without brake opening)
Description
The NICE3000+ is a cutting-edge integrated solution specifically designed for elevators, providing a comprehensive suite of components and advanced features to ensure safe, efficient, and reliable operation. Developed with a strong emphasis on safety, this solution is fully compliant with the stringent EN81-20/50 standards.

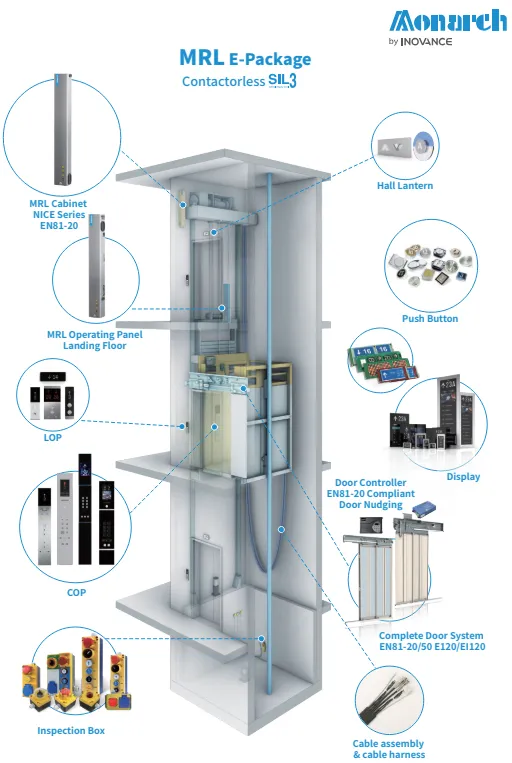

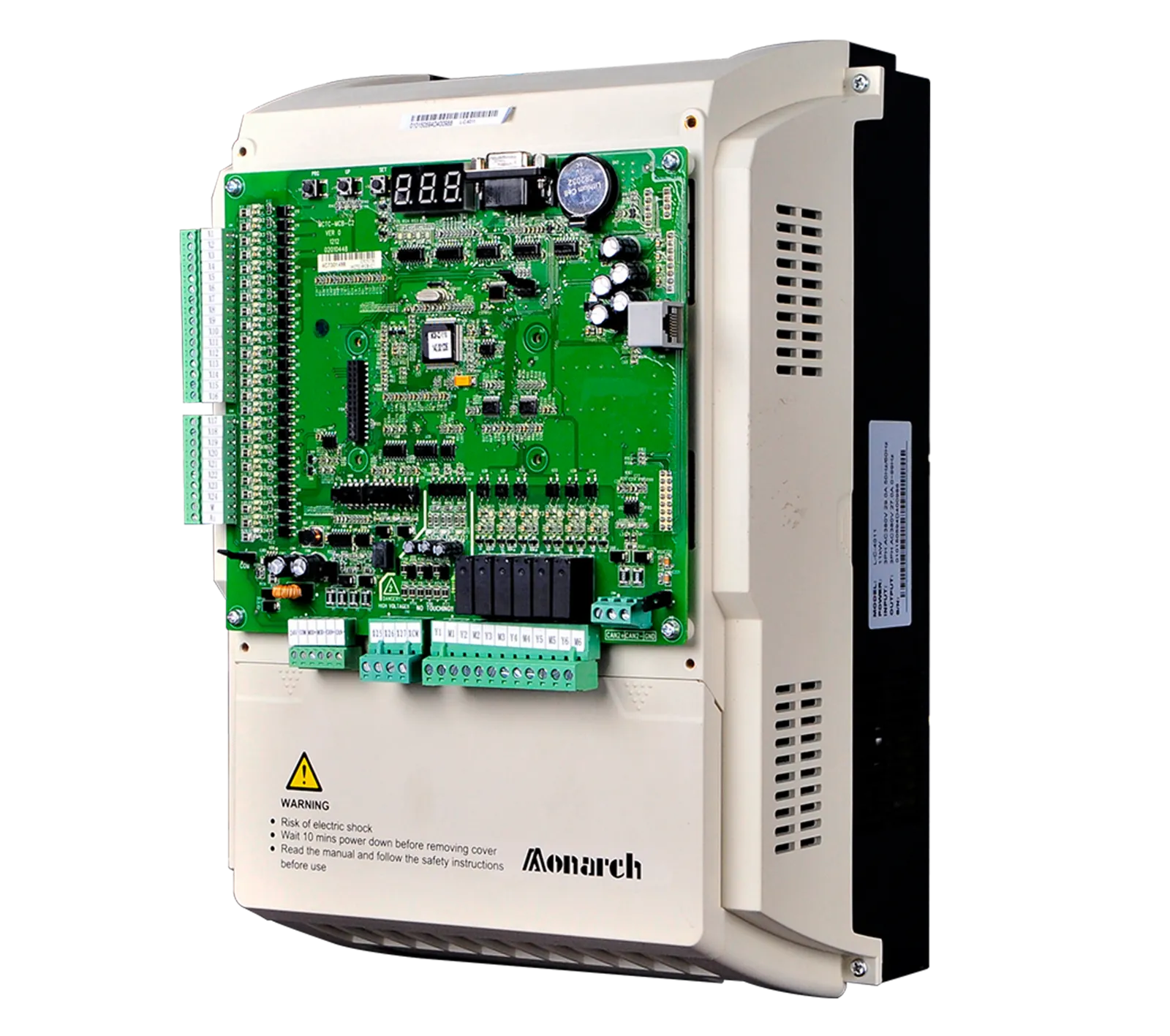

At the heart of the NICE3000+ lies the powerful car top board, which acts as the central control unit, seamlessly integrating with a range of other components such as car call boards, display panels, door controllers, and group control boards. These components work in harmony to deliver a smooth and intuitive user experience, with features like automatic door control, selectable fireman operation, and intelligent light load direction search for rescue operations with UPS backup.

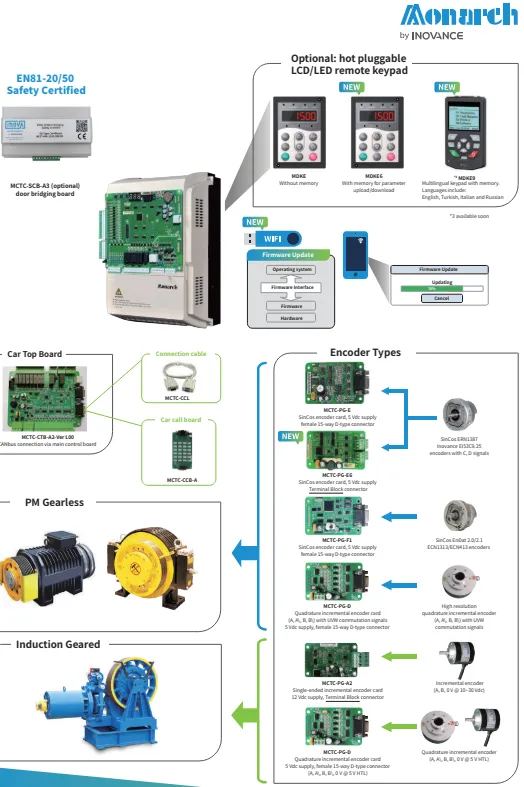

The system offers exceptional flexibility, supporting various encoder types, including SinCos, EnDat, and incremental encoders, as well as a wide range of programmable I/O configurations. The NICE3000+ also boasts advanced features like anti-rollback protection for gearless machines, pre-torque function for geared machines, and static auto-tuning capabilities for both asynchronous and synchronous motors.

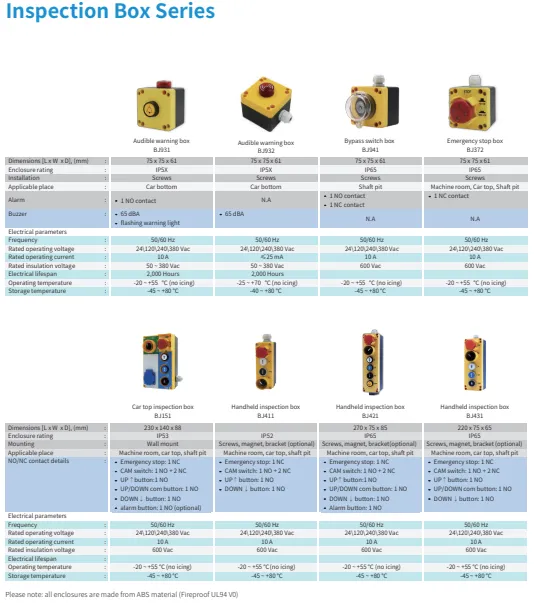

Furthermore, the NICE3000+ incorporates a range of accessories, such as remote keypads, arrival annunciators, and maintenance tools, enabling efficient commissioning, monitoring, and maintenance. With its modular design and scalable architecture, the NICE3000 can be tailored to meet the specific requirements of any elevator project, making it an ideal choice for building owners, operators, and maintenance providers alike.
